Databases

Keep the PostgreSQL you run on your machine. On the cluster, the platform runs it for you: same version, same databases, same hostname.

compose.yaml
services:
  postgres:
    image: pgvector/pgvector:pg16 # (1)!
    environment:
      POSTGRES_DB: app
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD_FILE: /run/secrets/POSTGRES_PASSWORD # (2)!
    secrets:
      - POSTGRES_PASSWORD
      - APP_DB_PASSWORD
    volumes:
      - pgdata:/var/lib/postgresql/data # (3)!
    healthcheck:
      test: [CMD-SHELL, pg_isready -U postgres -d app]
      interval: 5s
    expose: ["5432"]
    deploy:
      resources:
        limits: # (4)!
          cpus: "1"
          memory: 1G
    x-stackgres: # (5)!
      databases:
        app:
          user: app # (6)!
          passwordSecret: APP_DB_PASSWORD # (7)!
          access: migrate # (8)!
          extensions: [pg_trgm, vector]

secrets:
  POSTGRES_PASSWORD:
    file: secrets/staging/postgres/POSTGRES_PASSWORD.txt
  APP_DB_PASSWORD:
    file: secrets/staging/postgres/APP_DB_PASSWORD.txt

volumes:
  pgdata:
    x-kubernetes:
      accessModes: [ReadWriteOnce]
      resources:
        requests:
          storage: 20Gi
  1. The version comes from the image. postgres and pgvector/pgvector are recognized.
  2. The password of the administrator, as a secret.
  3. The disk, declared as any volume. Its size is the size of the database.
  4. CPU and memory limits are required for a database.
  5. Asks the platform to run PostgreSQL for you.
  6. The user that owns the database.
  7. Its password, a secret granted to this service.
  8. What the user may do: runtime, migrate, or superuser.

Generated on every release. You never write these files or see them.

metadata:
  annotations:
    argocd.argoproj.io/sync-wave: '0'
  labels:
    com.docker.compose.project: my-app
    com.docker.compose.service: postgres
  name: postgres # (1)!
  namespace: my-app
spec:
  profile: production
  postgres:
    version: '16' # (2)!
    extensions:
    - name: pg_trgm
    - name: vector
  instances: 1 # (3)!
  replication:
    mode: async
  sgInstanceProfile: postgres # (4)!
  metadata:
    labels:
      clusterPods:
        com.docker.compose.project: my-app
        com.docker.compose.service: postgres
        com.docker.compose.network.default: 'true'
  pods:
    persistentVolume:
      size: 20Gi # (5)!
    disableConnectionPooling: true
  configurations:
    credentials:
      users:
        superuser:
          username:
            name: postgres-bootstrap
            key: username
          password:
            name: postgres-password # (6)!
            key: value
  managedSql:
    scripts:
    - id: 1
      sgScript: postgres-bootstrap # (7)!
apiVersion: stackgres.io/v1
kind: SGCluster
  1. The same hostname your services already use.
  2. Read from the image, not repeated by you.
  3. One PostgreSQL. See High availability.
  4. Your deploy.resources.
  5. The size of your volume.
  6. The administrator password, from the Secret of the cluster.
  7. Your databases, turned into SQL.

The SQL that creates the user, the database, its permissions, and its extensions:

metadata:
  annotations:
    argocd.argoproj.io/sync-wave: '-4'
  labels:
    com.docker.compose.project: my-app
    com.docker.compose.service: postgres
  name: postgres-bootstrap
  namespace: my-app
spec:
  managedVersions: false
  continueOnError: false
  scripts:
  - name: role-app # (1)!
    id: 251247141
    version: 1747536522
    retryOnError: true
    scriptFrom:
      secretKeyRef:
        name: postgres-bootstrap
        key: app.sql
  - name: database-app
    id: 259060116
    version: 1
    script: CREATE DATABASE "app";
  - name: configure-app
    id: 1615423328
    version: 324597363
    database: app
    retryOnError: true
    script: 'CREATE EXTENSION IF NOT EXISTS "pg_trgm";

      CREATE EXTENSION IF NOT EXISTS "vector";

      REVOKE CONNECT ON DATABASE "app" FROM PUBLIC;

      GRANT CONNECT ON DATABASE "app" TO "app";

      GRANT USAGE, CREATE ON SCHEMA public TO "app";

      GRANT SELECT, INSERT, UPDATE, DELETE ON ALL TABLES IN SCHEMA public TO "app";

      GRANT USAGE, SELECT ON ALL SEQUENCES IN SCHEMA public TO "app";

      ALTER DEFAULT PRIVILEGES FOR ROLE "postgres" IN SCHEMA public GRANT SELECT,
      INSERT, UPDATE, DELETE ON TABLES TO "app";

      ALTER DEFAULT PRIVILEGES FOR ROLE "postgres" IN SCHEMA public GRANT USAGE, SELECT
      ON SEQUENCES TO "app";

      '
apiVersion: stackgres.io/v1
kind: SGScript
  1. The user, with its password taken from your secret. The password itself never appears here.

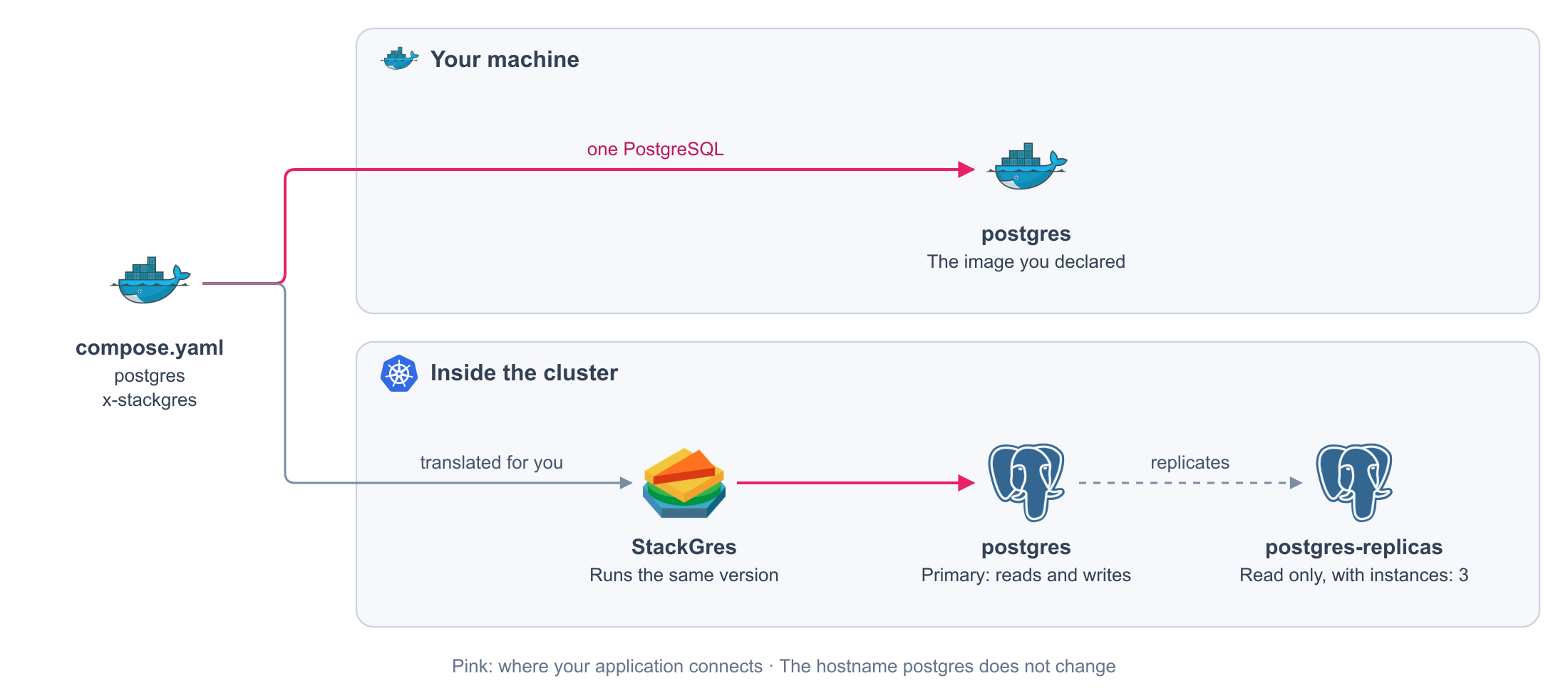

Your PostgreSQL image runs on your machine; on the cluster StackGres runs the same version behind the same hostname

Fields

Field Required Default Values
databases.<name>.user Yes The user that owns the database. Lowercase letters, digits, and _
databases.<name>.passwordSecret Yes A secret granted to the service
databases.<name>.access Yes runtime: read and write rows. migrate: also create tables. superuser: the administrator only
databases.<name>.extensions No PostgreSQL extensions, such as pg_trgm or vector
version No Read from the image The PostgreSQL version, when the image does not say it
instances No 1 Copies of PostgreSQL. One is the primary; the rest are replicas
replication.mode No async async, sync, strict-sync, sync-all, strict-sync-all
replication.syncInstances No 1 Replicas that confirm each write, with sync or strict-sync
profile No production production, testing, development

Any other field in x-stackgres is an error.

What you get

On your machine

Behavior Detail
The image you declared One PostgreSQL, with your scripts in /docker-entrypoint-initdb.d/ if you have them
Your secrets as files POSTGRES_PASSWORD_FILE and the passwords of your databases

On the cluster

Behavior Detail
The same version Read from the image: pgvector/pgvector:pg16 runs PostgreSQL 16
The same hostname Your services keep connecting to postgres:5432
Your databases Users, databases, permissions, and extensions are created from databases, not from your scripts
Your disk The size and class of your volume
Migrations wait A lifecycle hook runs only when the databases exist
Passwords rotate Change a secret, and the user gets the new password

Rules

Rule Detail
The image says the version postgres and pgvector/pgvector are read. For another image, declare version
version agrees with the image A version that contradicts the image is rejected
One disk Exactly one writable volume, mounted at the data directory
Limits are required deploy.resources.limits with cpus and memory
Only the standard settings environment holds POSTGRES_USER, POSTGRES_DB, POSTGRES_PASSWORD_FILE, and PGDATA, nothing else
The administrator is the only superuser access: superuser is for the user of POSTGRES_USER
One password per user Two databases of the same user share the secret
Internal only No ports and no x-ingress. Other services reach it at postgres:5432
Copies are instances deploy.replicas on the database is rejected. Use instances
Synchronous needs company sync and strict-sync need at least two instances

Next

To Read
Run a primary with replicas High availability
Back it up, or start from a backup Backups
Run Redis, OpenSearch, or any service that owns its data Stateful services
