GitOps¶

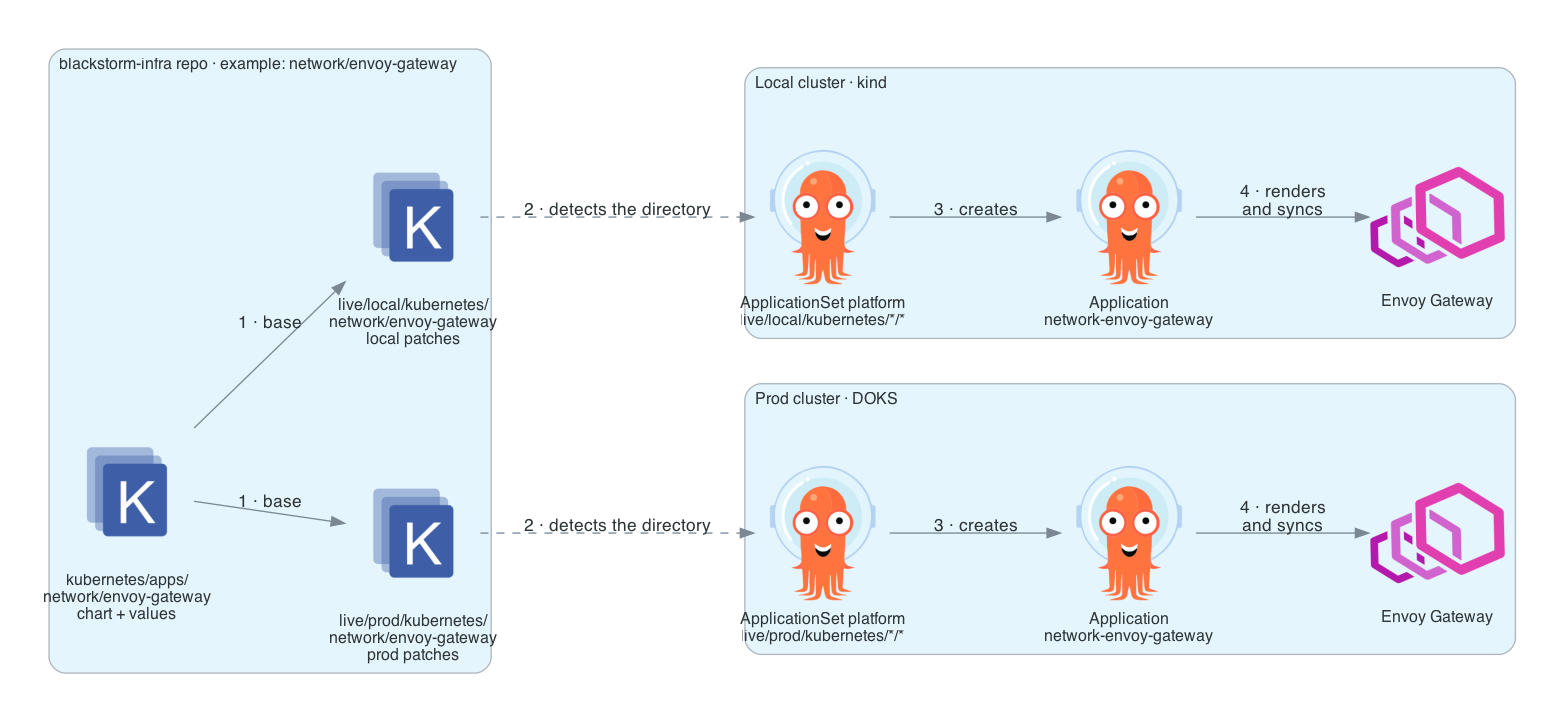

Layout¶

bootstrap/helmfile.yaml                  # Argo CD and the secrets operator, before GitOps exists
kubernetes/apps/<namespace>/<app>/       # each component, defined once: chart and values
live/<cluster>/kubernetes/
├── appproject.yaml                      # project "platform"
├── applicationset.yaml                  # one Application per directory below
└── <namespace>/<app>/kustomization.yaml # "this component runs here", plus cluster patches

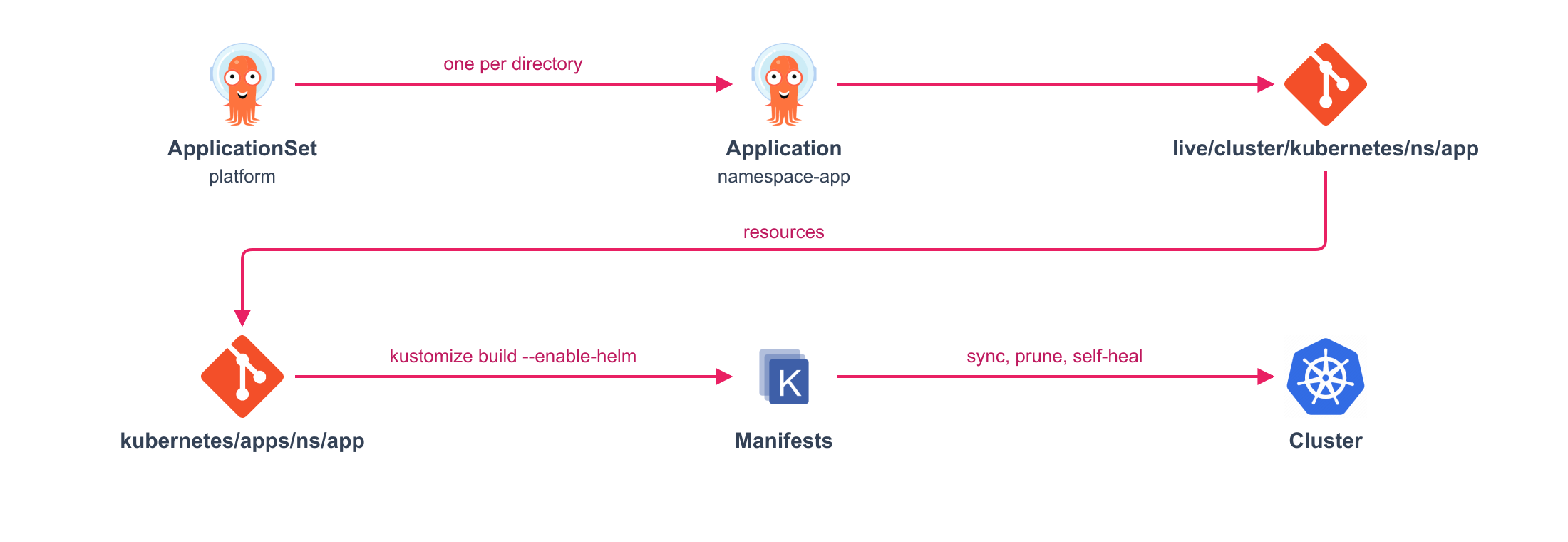

From a directory to the cluster¶

live/local/kubernetes/applicationset.yaml

generators:
  - git:
      repoURL: [email protected]:blackstorm-dev/blackstorm-infra.git
      revision: main
      directories:
        - path: live/local/kubernetes/*/* # (1)!
template:
  metadata:
    name: "{{ index .path.segments 3 }}-{{ .path.basename }}" # (2)!
  spec:
    syncPolicy:
      automated:
        prune: true
        selfHeal: true

Every directory at this depth becomes an Application.
<namespace>-<app>, for example network-envoy-gateway.

Recipes¶

Goal	Change
Run a new component	Add `kubernetes/apps/<ns>/<app>/` and `live/<cluster>/kubernetes/<ns>/<app>/kustomization.yaml`
Stop running a component in a cluster	Delete `live/<cluster>/kubernetes/<ns>/<app>/`
Change something in one cluster only	Add a patch to that cluster's `kustomization.yaml`
Upgrade a component	Change the chart version in `kubernetes/apps/<ns>/<app>/kustomization.yaml`

live/local/kubernetes/velero/velero-ui/kustomization.yaml

apiVersion: kustomize.config.k8s.io/v1beta1
kind: Kustomization
resources:
  - ../../../../../kubernetes/apps/velero/velero-ui # (1)!
  - httproute.yaml # (2)!

The shared definition.
What only this cluster adds.

Make Argo CD read the repository now

It checks every three minutes. To force it:

kubectl --context local -n argocd annotate applicationset platform \
  argocd.argoproj.io/application-set-refresh=true --overwrite
