Observability¶

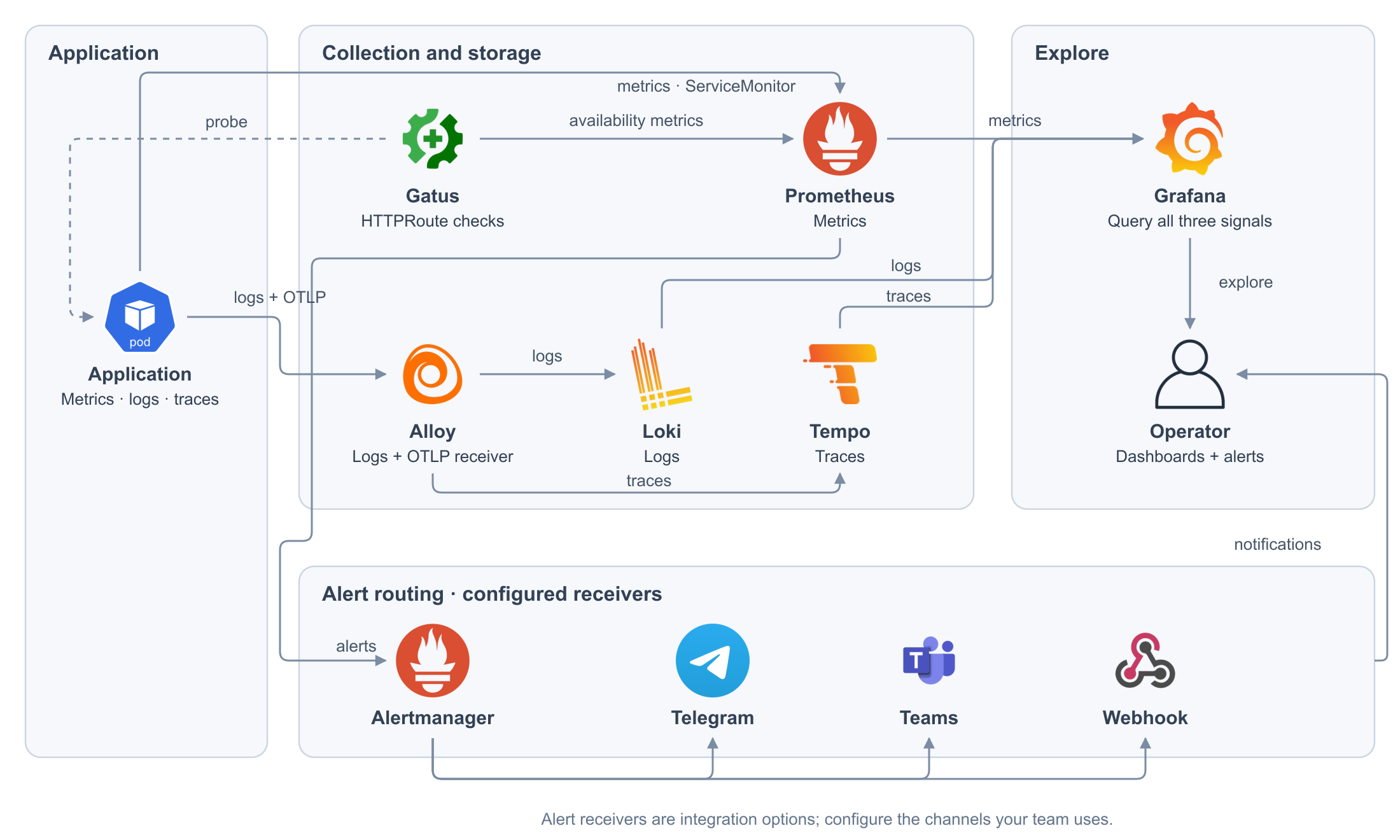

Components¶

Component	Role	Defined in
Alloy	One per node. Reads pod logs and receives OTLP traces	`kubernetes/apps/o11y/alloy/`
Loki	Stores logs	`kubernetes/apps/o11y/loki/`
Tempo	Stores traces	`kubernetes/apps/o11y/tempo/`
Prometheus	Collects metrics from every `ServiceMonitor` labelled `release: monitoring`	`kubernetes/apps/o11y/kube-prometheus-stack/`
Alertmanager	Routes alerts to the configured receivers	`kubernetes/apps/o11y/kube-prometheus-stack/`
Grafana	Queries and dashboards	`kubernetes/apps/o11y/kube-prometheus-stack/`
Gatus	Checks every published `HTTPRoute`	`kubernetes/apps/o11y/gatus/`

Settings¶

Setting	Value
Log retention	72 hours
Trace retention	72 hours
Metric retention	7 days, up to 4 GB
OTLP endpoints	`alloy.o11y.svc.cluster.local`, gRPC `4317` and HTTP `4318`

Logs and traces are linked¶

From	To	How
A log line	Its trace	The `trace_id` field of the line
A trace	The logs of its pod	The attributes `k8s.namespace.name` and `k8s.pod.name`

kubernetes/apps/o11y/loki/grafana-datasource.yaml

jsonData:
  derivedFields:
    - name: TraceID
      matcherRegex: '"trace_id"\s*:\s*"([a-f0-9]{32})"' # (1)!
      datasourceUid: tempo

Applications must log JSON with a 32-character trace_id.

Dashboards¶

Dashboards ship as ConfigMaps labelled grafana_dashboard: "1".

kubernetes/apps/o11y/kube-prometheus-stack/kustomization.yaml

configMapGenerator:
  - name: monitoring-extra-dashboards
    files:
      - dashboards/gatus.json
      - dashboards/velero.json
    options:
      labels:
        grafana_dashboard: "1"

Alerts have no receiver yet

Alertmanager runs, but no channel is configured.
