Delivery

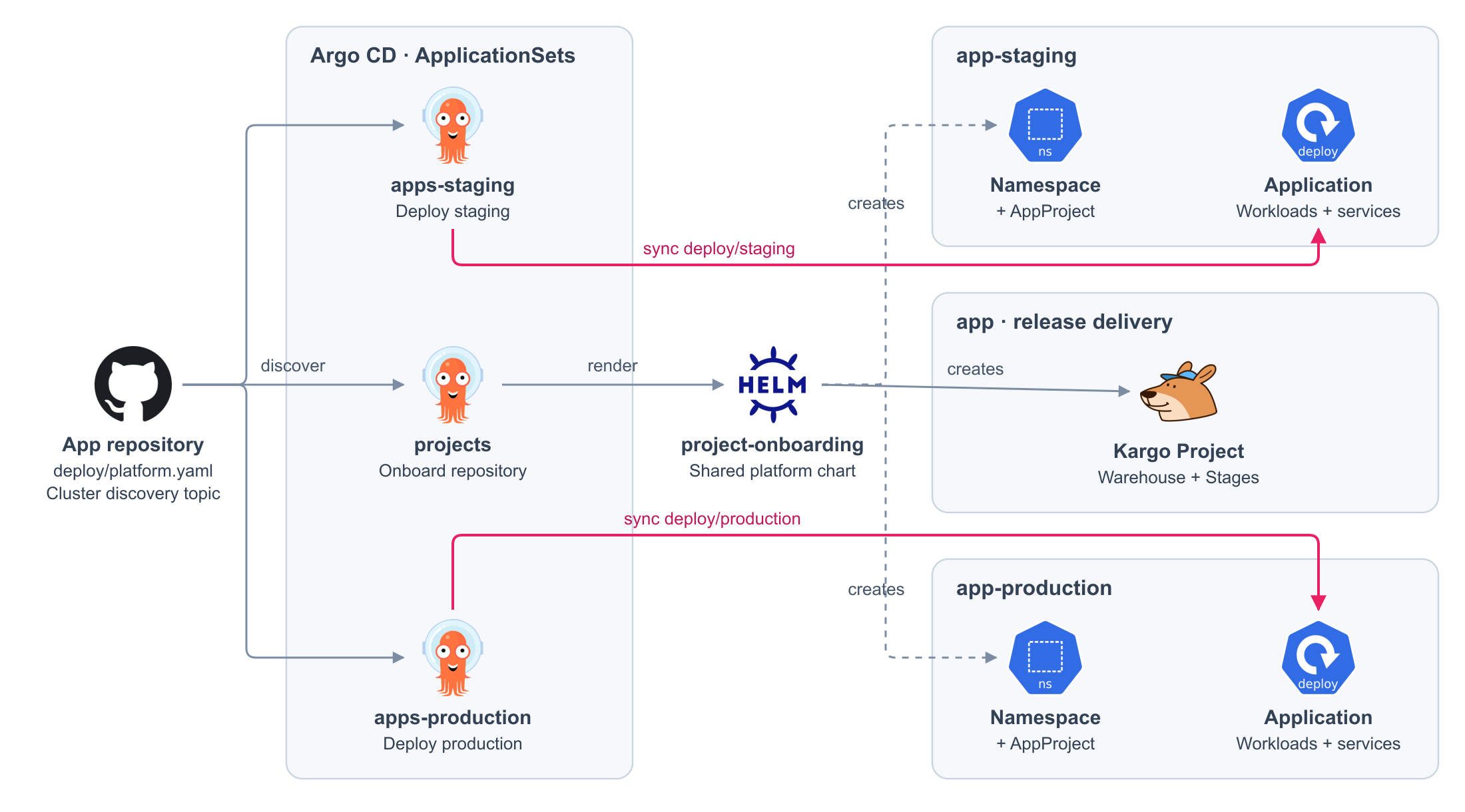

Discovery and onboarding

ApplicationSet	Creates	From
projects	<repo>-onboarding: namespaces, AppProjects, Kargo project	kubernetes/charts/project-onboarding
apps-staging	<repo>-staging	Branch deploy/staging of the application repository
apps-production	<repo>-production	Branch deploy/production of the application repository

A repository is selected when it has the topic blackstorm-deploy, a default branch named main or master, and the file deploy/platform.yaml.

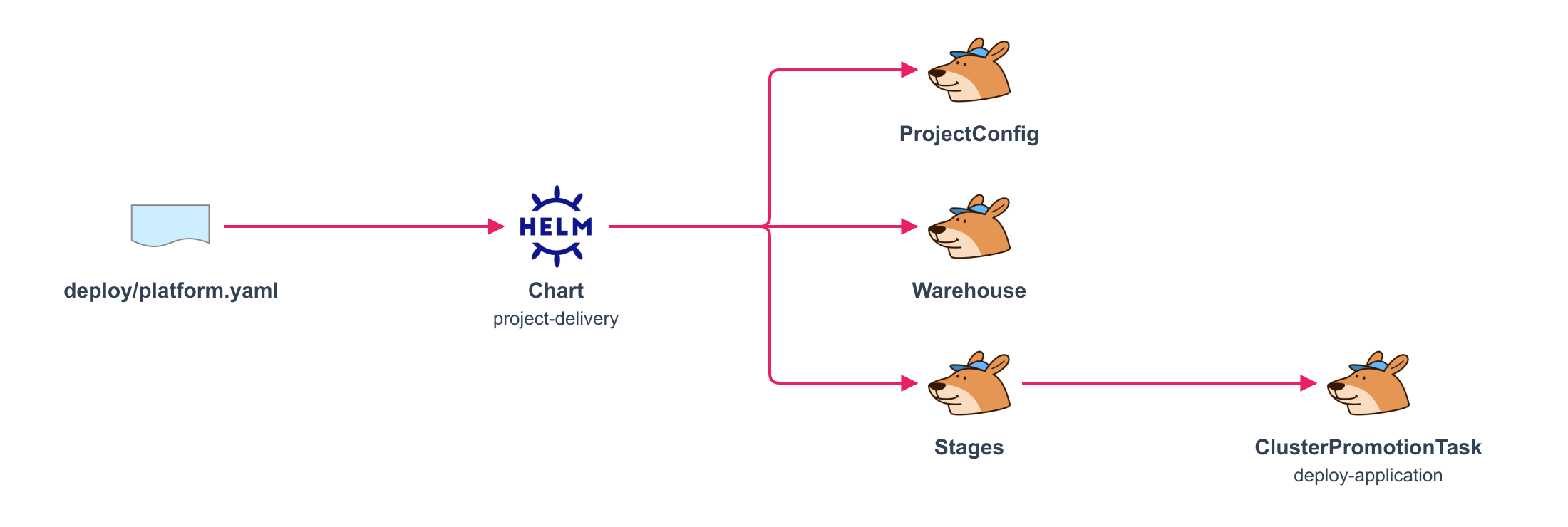

From the contract to Kargo

The application declares what it releases. The platform generates how it is promoted.

Generated	From the contract
ProjectConfig	promotion of each environment
Warehouse	images and releaseFormat
Stage	path and from of each environment

kubernetes/charts/project-onboarding/templates/kargo.yaml

sources:
  - repoURL: [email protected]:blackstorm-dev/blackstorm-infra.git
    path: kubernetes/charts/project-delivery
    helm:
      valueFiles:
        - $project/deploy/platform.yaml # (1)!
  - repoURL: <application repository>
    ref: project
    path: secrets/platform # (2)!

1. The contract is validated against values.schema.json when the chart renders.
2. The credentials Kargo needs to read the application images.

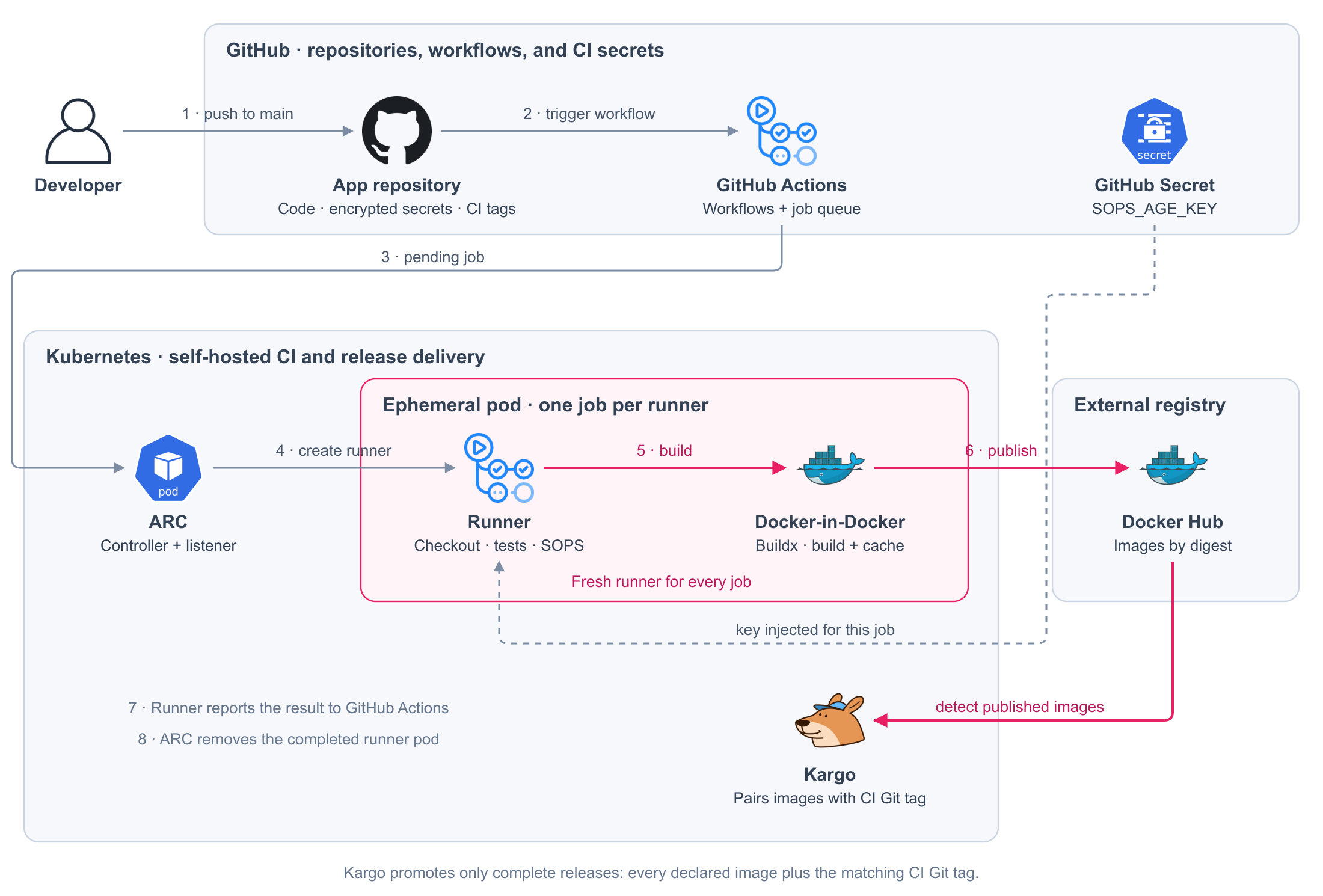

Continuous integration

Component	Role
GitHub Actions	Queues the jobs
ARC controller and listener	Create one runner per job and remove it afterwards
Runner pod	Checks out, decrypts with SOPS, builds with Docker-in-Docker

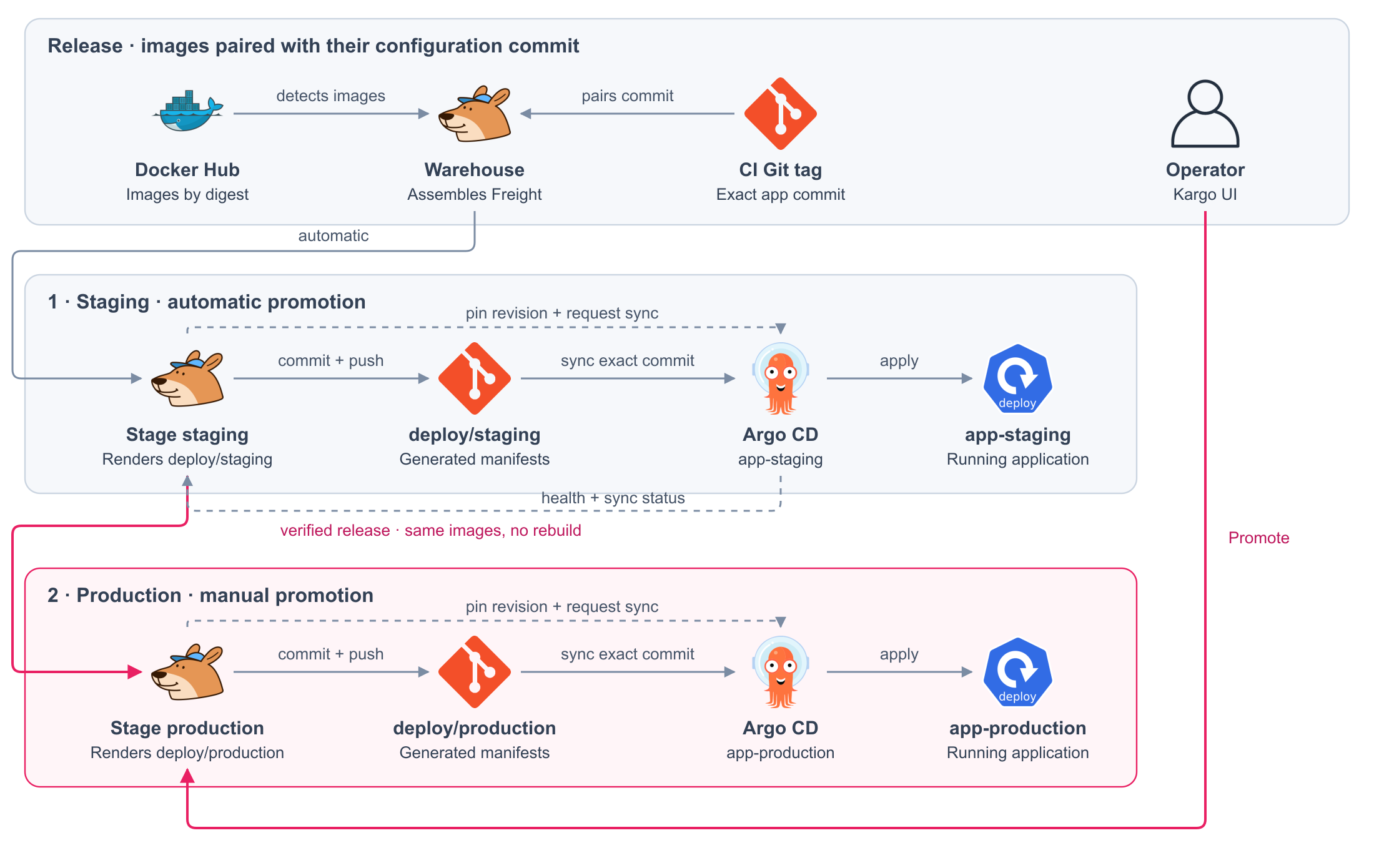

Promotion

kubernetes/apps/kargo/kargo/deploy-application.yaml

steps:
  - uses: git-clone # (1)!
  - uses: git-clear
  - uses: kustomize-set-image # (2)!
  - uses: kustomize-build
  - uses: git-commit
  - uses: git-push # (3)!
  - uses: argocd-update # (4)!

1. The validated commit, and the output branch deploy/<stage>.
2. Pins every image of the release by digest.
3. The rendered manifests go to the output branch.
4. Points the Argo CD application to that commit and waits for the sync.

Release formats

releaseFormat	Git tag	Image tag
coordinated-tags, the default	blackstorm-ci-<run>-<attempt>	The same as the Git tag
commit-sha	ci-<run>-<attempt>-<commit-sha>	<commit-sha>

Freight is created only when the Git tag and every image of the release exist.
