Health checks

Tell the platform how to know that your service is ready. Until it is, no traffic reaches it.

You declareThe platform generates

compose.yaml

services:
  web:
    image: my-app:local
    healthcheck:
      test: [CMD, curl, --fail, http://localhost:8000/healthz] # (1)!
      interval: 10s # (2)!
      timeout: 5s
      retries: 5 # (3)!
      start_period: 30s # (4)!

1. A command that exits with 0 when the service is ready. It runs inside the container.
2. How often it runs.
3. How many failures in a row make the service not ready.
4. How long to wait after the start before the first check.

Generated on every release. You never write this file or see it.

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    com.docker.compose.project: my-app
    com.docker.compose.service: web
  name: web
  namespace: my-app
spec:
  replicas: 1
  selector:
    matchLabels:
      com.docker.compose.project: my-app
      com.docker.compose.service: web
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        com.docker.compose.project: my-app
        com.docker.compose.service: web
        com.docker.compose.network.default: 'true'
    spec:
      containers:
      - image: my-app:local
        imagePullPolicy: IfNotPresent
        name: web
        readinessProbe: # (1)!
          exec: # (2)!
            command:
            - curl
            - --fail
            - http://localhost:8000/healthz
          failureThreshold: 5 # (3)!
          initialDelaySeconds: 30 # (4)!
          periodSeconds: 10 # (5)!
          successThreshold: 1 # (6)!
          timeoutSeconds: 5 # (7)!

1. Ready or not ready. Never a restart.
2. Your test.
3. Your retries.
4. Your start_period.
5. Your interval.
6. One pass, and it is ready again.
7. Your timeout.

Fields

Field	Required	Default	Values
test	Yes		[CMD, ...] with a command and its arguments, or [CMD-SHELL, "..."] with one script. [NONE] turns the check off
interval	No	30s	A duration, such as 10s or 1m30s
timeout	No	30s	A duration
retries	No	3	An integer
start_period	No	0s	A duration
disable	No	false	true turns the check off

Durations are rounded up to whole seconds.

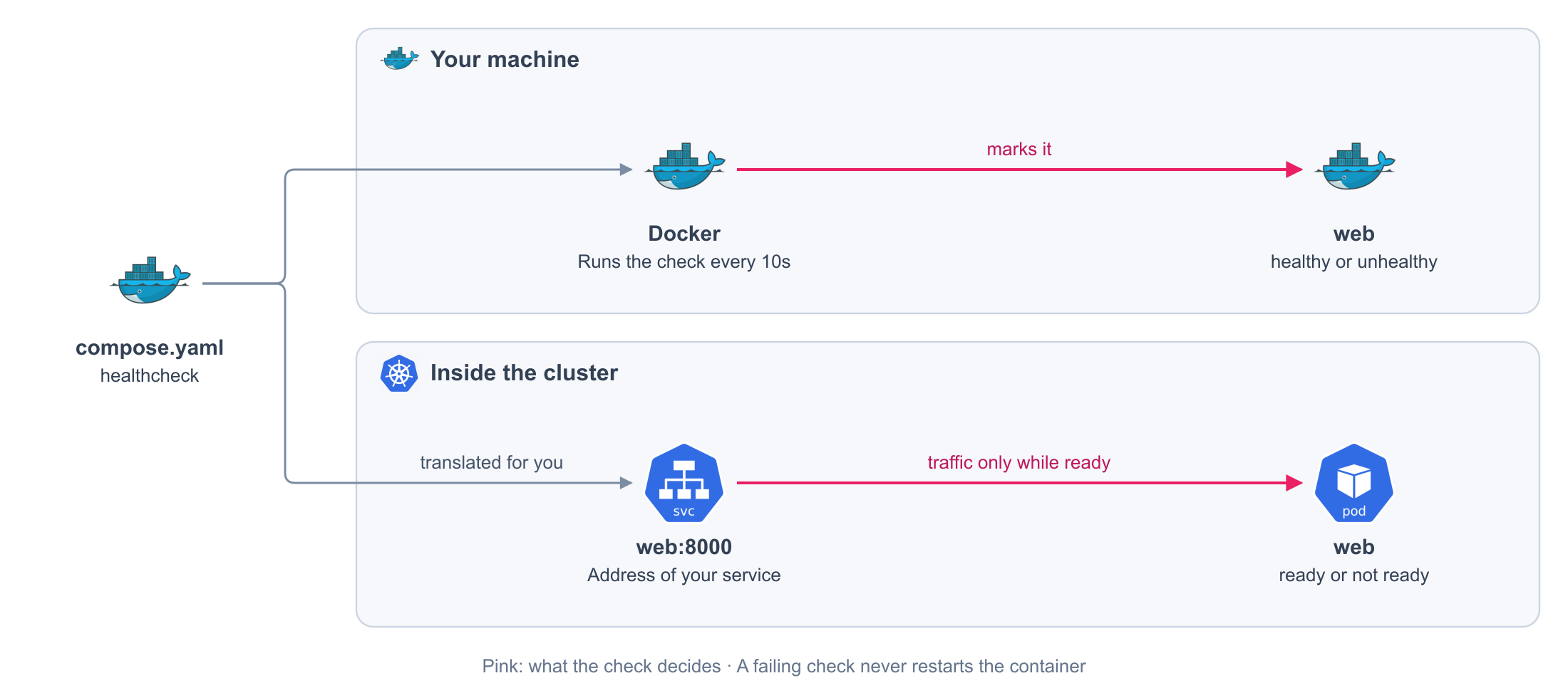

What you get

On your machine

Behavior	Detail
A status	Docker marks the container healthy or unhealthy
Others wait for it	A service with depends_on and condition: service_healthy starts when the check passes
No restart	An unhealthy container keeps running

On the cluster

Behavior	Detail
Traffic only while ready	The service receives requests while the check passes, and stops receiving them when it fails
No restart	A failing check never restarts the container
The first check waits	During start_period, the cluster does not run the check. Docker can report healthy before it ends

Restart it when it hangs

The health check decides who receives traffic. Two more checks decide when a container is restarted, and how long a start may take. They only exist on the cluster.

You declareThe platform generates

compose.production.yaml

services:
  web:
    deploy:
      x-kubernetes:
        Probes:
          Startup: # (1)!
            httpGet: {path: /healthz, port: 8000}
            periodSeconds: 5
            failureThreshold: 36
          Liveness: # (2)!
            httpGet: {path: /healthz, port: 8000}
            periodSeconds: 15
            timeoutSeconds: 5
            failureThreshold: 5

1. Up to 36 tries, every 5 seconds: three minutes to start before the other checks begin.
2. Five failures in a row, and the container is restarted.

Generated on every release. You never write this file or see it.

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    com.docker.compose.project: my-app
    com.docker.compose.service: web
  name: web
  namespace: my-app
spec:
  replicas: 1
  selector:
    matchLabels:
      com.docker.compose.project: my-app
      com.docker.compose.service: web
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        com.docker.compose.project: my-app
        com.docker.compose.service: web
        com.docker.compose.network.default: 'true'
    spec:
      containers:
      - image: my-app:local
        imagePullPolicy: IfNotPresent
        livenessProbe: # (1)!
          failureThreshold: 5
          httpGet:
            path: /healthz
            port: 8000
          periodSeconds: 15
          timeoutSeconds: 5
        name: web
        readinessProbe: # (2)!
          exec:
            command:
            - curl
            - --fail
            - http://localhost:8000/healthz
          failureThreshold: 3
          initialDelaySeconds: 0
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 30
        startupProbe: # (3)!
          failureThreshold: 36
          httpGet:
            path: /healthz
            port: 8000
          periodSeconds: 5

1. Your Liveness. When it fails, the container is restarted.
2. Your healthcheck, as before.
3. Your Startup. Until it passes, the other two wait.

Field	What it does
Probes.Readiness	Replaces the healthcheck as the check for traffic
Probes.Liveness	Restarts the container when it fails
Probes.Startup	Runs first. The other checks wait until it passes

Each check has exactly one action, httpGet, tcpSocket, exec, or grpc, and the timings initialDelaySeconds, periodSeconds, timeoutSeconds, failureThreshold, and successThreshold, with their Kubernetes names. On your machine they have no effect: Docker keeps using healthcheck.

Rules

Rule	Detail
The check is yours	test is required. The HEALTHCHECK of the image is not read
One script	CMD-SHELL takes exactly one script
No start_interval	It has no equivalent on the cluster and is rejected
One action per check	A probe with two actions, or none, is rejected
Liveness and Startup pass once	successThreshold other than 1 is rejected for them
Only permanent services	A scheduled job or a database cannot declare Probes
